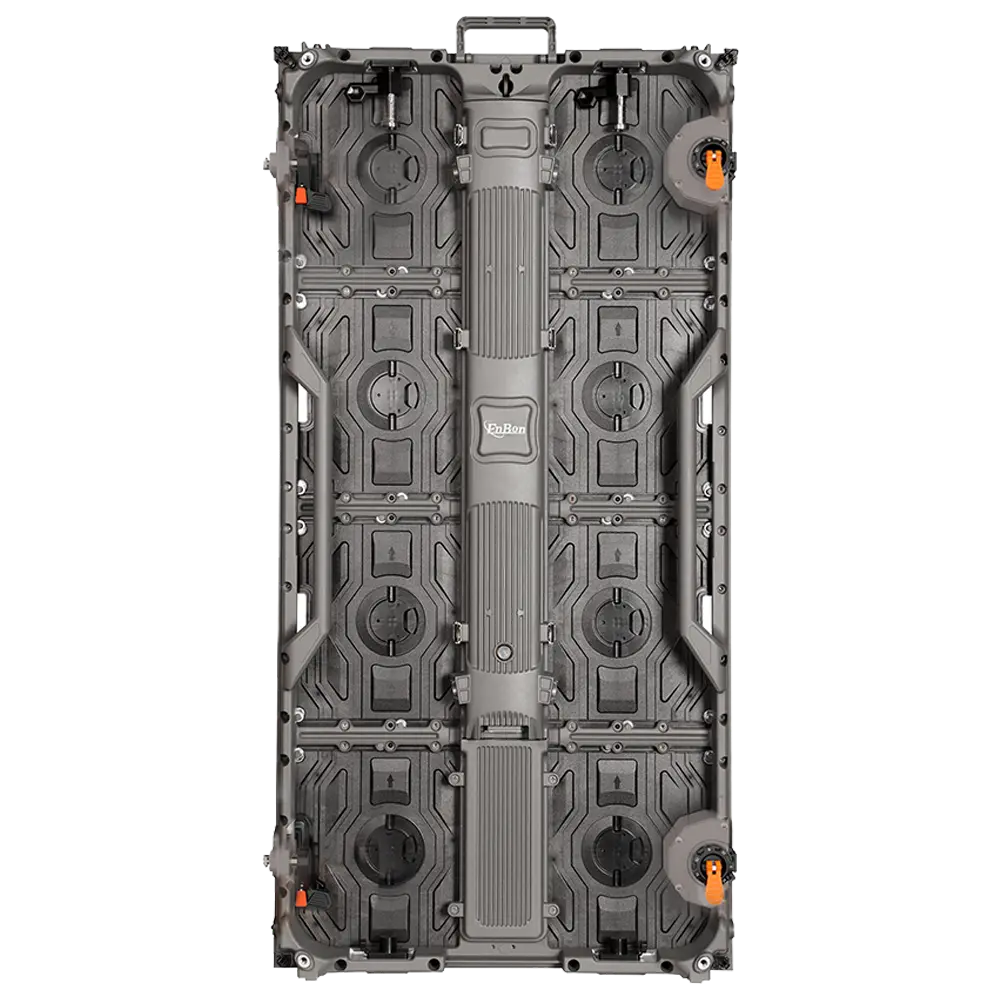

코너 보호
스택 구조 홀
파워 커넥터
모듈 핸들
사이드 핸들
신호 커넥터
패스트 락
상단 핸들
상단 패스트 락
곡선 락
로고 위치
인디케이터 라이트
충돌 방지 장치
전면 유지보수
후면 유지보수
500mm 500mm 1000mm
500x500mm
500x1000mm
낮은 새로 고침 속도
높은 새로 고침 속도
낮은 그레이스케일
높은 그레이스케일
| Item | Indoor | Outdoor | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56 | 1.95 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 | |
| LED lamp | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD1415 | SMD1415 | SMD1921 | |
| Density(dots/m2) | 409600 | 262144 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | |
| Brightness | 650~1000 nits | 650~1000 nits | 650~1000 nits | 650~1000 nits | 700~1300 nits | 3500~4500 nits | 3500~4500 nits | 3500~4500 nits | |
| IP rating | IP45 | IP45 | IP45 | IP45 | IP45 | IP65 | IP65 | IP65 | |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||||||
| Scan | 40 scan | 32 scan | 32 scan | 28 scan | 16 scan | 24 scan | 21 scan | 16 scan | |
| Module weight | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg | |
| Cabinet Weight | 15 kg | 15 kg | 15 kg | 15 kg | 15 kg | 16 kg | 16 kg | 16 kg | |
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | |
| Cabinet size(mm) | 500*1000*85 | 500*1000*85 | 500*1000*85 | 500*1000*85 | 500*1000*85 | 500*1000*85 | 500*1000*85 | 500*1000*85 | |
| Module pixel | 160*160 dots | 128*128 dots | 96*96 dots | 84*84 dots | 64*64 dots | 96*96 dots | 84*84 dots | 64*64 dots | |
| Cabinet pixel | 320*640 dots | 256*512 dots | 192*384 dots | 168*336 dots | 128*256 dots | 192*384 dots | 168*336 dots | 128*256 dots | |
| Max Power | 550 w/sqm | 550 w/sqm | 550 w/sqm | 550 w/sqm | 550 w/sqm | 680 w/sqm | 680 w/sqm | 680 w/sqm | |
| Average Power | 185 w/sqm | 185 w/sqm | 185 w/sqm | 185 w/sqm | 185 w/sqm | 230 w/sqm | 230 w/sqm | 230 w/sqm | |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||||
| Control way | Synchronous / Asynchronous | Synchronous / Asynchronous | |||||||
| Gray Scale | 16 bit | 16 bit | |||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||||
| Work humidity | 10% ~ 90% | 10% ~ 90% | |||||||
| Work temperature | ﹣20 ~﹢65℃ | ﹣20 ~﹢65℃ | |||||||
LED Module |
|
| Pixel Pitch | Indoor:1.56,1.95,2.604, 2.976,3.91 Outdoor:2.604,2.976, 3.91 |
|---|---|
| LED lamp | Indoor: SMD1212/1515/2121 Outdoor: SMD1415/1921 |
| Brightness | Indoor: 650~1000 nits Outdoor: 3500~4500 nits |
| Module pixel | Indoor:160*160/128*128/96*96/ 84*84/64*64(dots) Outdoor: 96*96/84*84/64*64(dots) |
| Cabinet pixel | Indoor: 320*640/256*512/ 192*384/168*336/ 128*256(dots) Outdoor: 192*384/168*336/128*256(dots) |
Appearance |
|
| Module size | Indoor: 250*250mm Outdoor:250*250mm |
| Cabinet size | Indoor: 500*1000*85mm Outdoor: 500*1000*85mm |
| Module weight | Indoor: 0.5kg Outdoor: 0.5kg |
| Cabinet Weight | Indoor: 15kg Outdoor:16kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | Indoor: 550w/sqm Outdoor: 680w/sqm |
| Average Power | Indoor: 185w/sqm Outdoor: 230w/sqm |
Waterproof grade |
|
| IP rating | Indoor : IP45 Outdoor: IP65 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | Indoor:40/32/32/28/16(scan) Outdoor:24/21/16(scan) |
Material density |
|
| Density | Indoor:409600/262144/147456/ 112896/65536dots/m2 Outdoor:147456/112896/65536dots/m2 |
| Cabinet Materiel | Die-casting Aluminum |
